Description

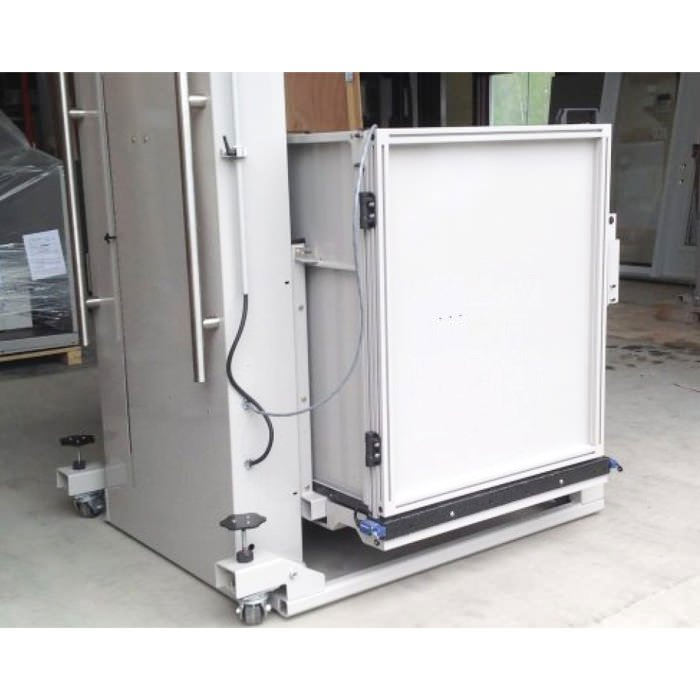

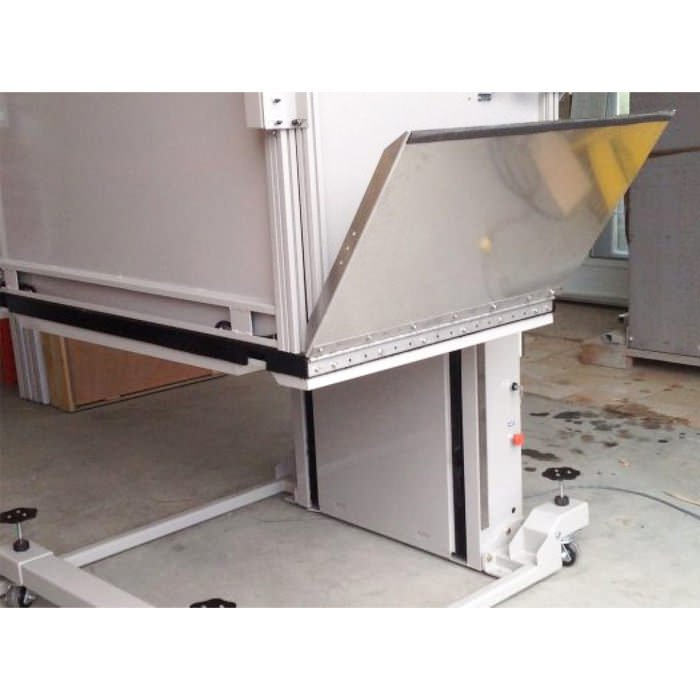

Atlas Vista Mobile portable vertical platform lift is perfect to be used in several places in the same building, as it is easily movable and adjustable. Vista mobile platform lift meets both commercial and residential safety standards. The wheels can be retracted with the adjustable screws to stabilize the platform, and in combination of the safety switches, this machine is just as safe to use as a permanent installation.
Vehicle type
- Standard floor dimensions – 34″ x 60″
- Includes an extra gate assembly on the carriage
- Elevator platform for one person in wheelchair and one helper
- Mandatory barrier on the carriage to accommodate the attendant
Device category
- Porch lift
- Vertical lift, open shaft
- Wheelchair lift Vista Mobile, indoor and outdoor use.
| Features | Included |
|
|
Installation requirements: A firm and level ground surface ex: concrete slab, wood, tiles…GFCI outlet close to the lifting tower
Sizing :
| Atlas Vista mobile portable platform lift | |
| Drive type | Acme screw and nut |
| Nominal speed | 0.05 m/s (9 fpm) |
| Maximum capacity | 750 lbs. |
| Motor | 24 volts DC |
| Available travel distance | 44″ or 64″ |
| Available cabin size | Width – 31.5″ to 40″ |
| Length – 48″ to 66″ | |
| Standard floor dimensions | 34″ x 60″ |
| Applicable standard | CSA/B355-09 |
| Controller | CSA Certification LR45147 |
| Door interlock | CSA Certification LR13004 |
